1.2316
- Type： 1.2316
- Description：
1.2316
1. din 1.2316 stainless steel plate
2.Tool steel 1.2316 Chemical composition :
|
C |
Mn |
Si |
S |
P |
Cr |
Mo |
Ni |
|
0.4% |
0.20-0.60% |
0.10-0.60% |
0.03% |
0.03% |
14-16% |
0.70-1.00% |
0.70-1.00% |
3. Stainless steel 1.2316 Application
Used for making the corrosion resistance and wear resistance of high quality plastic moulds for PVC
4. stainless steel DIN 1.2316 physical proerties as following :
|
Physical Properties |
Metric |
English |
|
Density |
7.75 g/cc |
0.280 lb/in3 |
|
Mechanical Properties |
Metric |
English |
|
Hardness ,Brinell |
340 |
340 |
|
Tensile Strength, Ultimate |
1135Mpa |
164600psi |
|
Tensile Strength, Yield |
950Mpa |
138000psi |
|
Elongation at Break |
10.0% |
10.0% |
|
Modulus of Elasticity |
207Gpa |
30000ksi |
|
Charpy Impact |
13.0J |
9.59ft-lb |
5. stainless steel DIN1.2316 is a 16% Cr 1% Mo with improved corrosion resistance properties. It with high cleanliness/homogeneity of the steel makes it specially adapted to fine polishing (mirror finish).
6. Stainless steel 1.2316 specification as following :

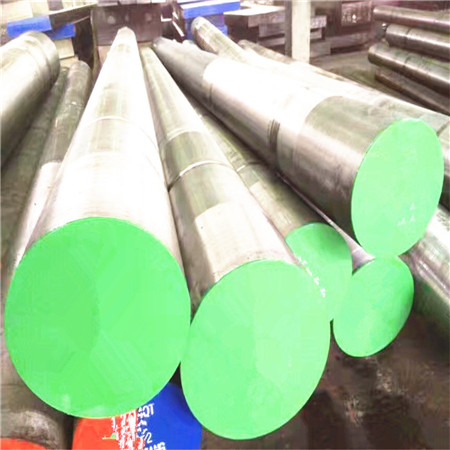

Tool steel 1.2316 round bars size range :
| Grade | 1.2316 | Hot rolled size range: Dia 16mm-45mm | |||
| Forged size range: Dia50mm-500mm | |||||
| Max dia | 500mm | EFS size range:Dia16mm-500mm | |||
| Min dia | 16mm | ESR size range:Dia16mm-500mm | |||
Tool steel 1.2316 flat bars size range :
| Grade | 1.2316 | Hot rolled size range:thk 15mm-45mm | |||
| Width :Max 610mm | |||||
| Min thk | 15mm | Forged size range:thk 50mm-350mm | |||
| Max thk | 350mm | Width :Max 700mm | |||
| EFS size range:thk 15mm-280mm | |||||
| Min width | 105 | Width: max 610mm | |||
| Max width | 650mm | ESR size range:thk 15mm-350mm | |||
| Width: max 700mm | |||||
Tool steel 1.2316 square bars size range :
| Grade | 1.2316 | Hot rolled size range:max45mm | |||
| Forged size range:50mm-500mm | |||||
| Max square | 500mm | EFS size range: max square 350mm | |||
| ESR size range: max square 500mm | |||||
